2 kinds of sequins on one side can be interchanged and embroidered at high speeds as desired. This next-generation Sequin device permits more design options and improves production efficiency. In addition to the TFGN Series, it is now installable to the other 3 series of TLMX, TCMX and TFMX. More colorful and expressive sequin patterns are appplicable on various embroidery designs.
Max. 4 types can be mounted on a single head

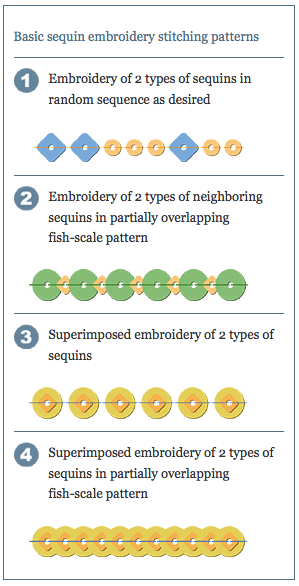

2 types of sequins with differing sizes, colors, and shapes can be mounted at both the right and left sides, respectively, thereby enabling up to 4 sequin types per head. (Sequins with diameter of 3 - 9mm are embroiderable.)
Empty sequin reel detection function
A "low sequin supply" is detected before the reel's supply of sequins is completely exhausted, and the embroidery machine is stopped at that time, thereby preventing out-of-sequins problems.
Manual table-lifter switch
This switch is mounted to the front side of the device to move the sequin devices up/down individually, providing easy access for adjustment.
High-speed operation at max.1,000 rpm!
High-speed operation is available at a max. of 1,000 rpm. 2 kinds of sequins can be switched and stitched at high speeds as desired by sliding sequin supply unit to the right or left. (Max. 800 rpm for switching sequins)
Features a motor-driven lifter
Stable up/down motion has been achieved through the adoption of a pulse motor and slide screw thus eliminating the need for pneumatic equipment. Moreover, this mechanism permits 2-step control of the lifter position and saves unnecessary up/down operation, thereby improving production efficiency.
Compact in a slim body
As a result of reviewing the device structure in a slim body, Sequin Device Ⅲ Twin type is now installable even to the TFGN Series 50 or 56 head models with smaller head interval.
